BEL series Line Shaft Deep Well Pump
Remarks:
We have been OEM for many brands from Europe and USA
Innovation points:

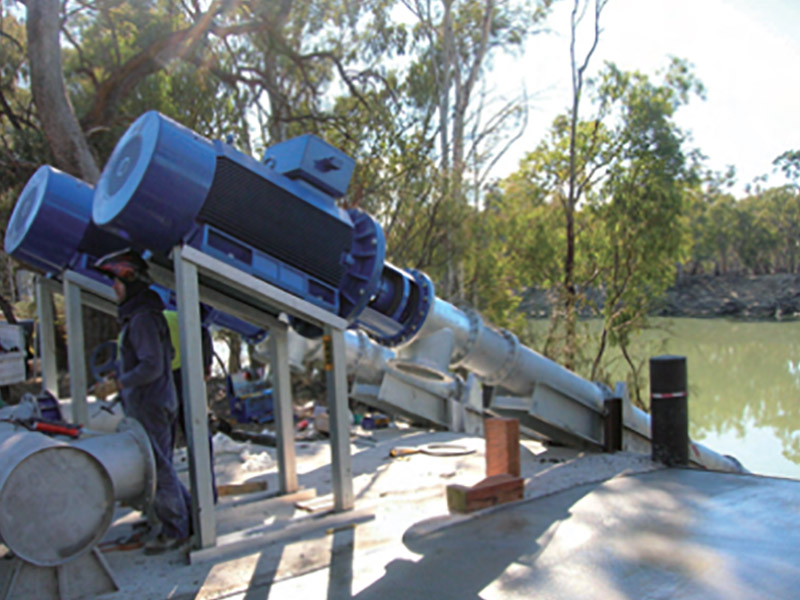

The line shaft deep well pump can be installed as inclined direction.
Constructure

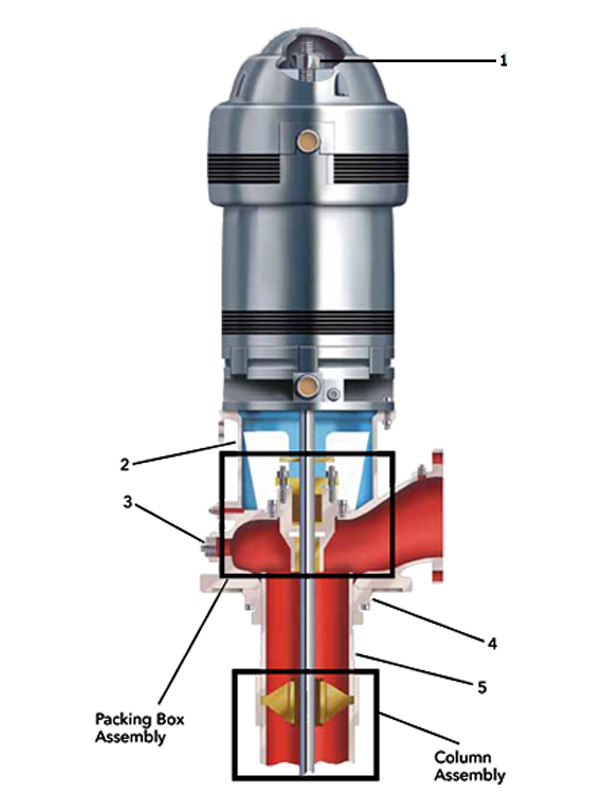

Water Lubrication
1 Adjusting Nut
Permits exact impeller adjustment for
maximum performance.
2 Discharge Head
Heavy-duty head provides maximum
accessibility to service packing box
assembly. Two piece head shaft is standard.
3 Prelube Connection
4 Column Adapter
Accepts threaded or flanged column.
5 Adjusting Nipple
Threads directly into column adapter.
Headshaft stickup set exactly by threading
head on column as required.

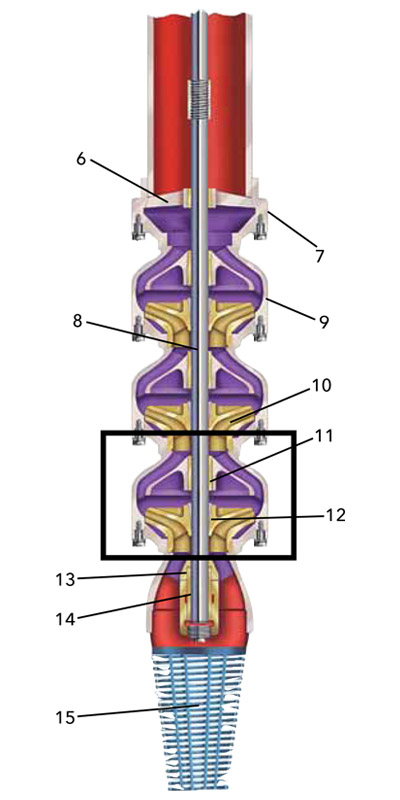

6 Discharge Bowl Bearing
Bronze.
7 Discharge Bowl
Close grained cast iron.
8 Pump Shaft
Oversized high strength polished stainless
steel.
9 Intermediate Bowls
Close grained cast iron. Waterways glass
lined for maximum efficiency.

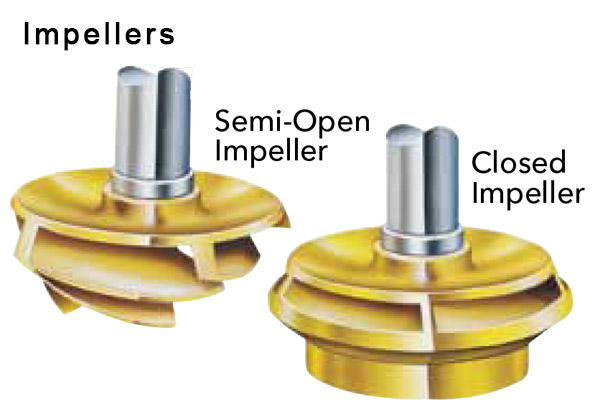

10 Impellers
Silicon bronze, designed for maximum
efficiency. Precision balanced for smooth
operation.
11 Intermediate Bowl Bearings
Bronze or rubber for long pump life under
any well conditions.
12 Lock Collets
Steel construction secures impeller to
pump shaft.
13 Sand Collar
Accurately located at suction bowl bearing
to eliminate possible sand buildup.
14 Suction Bowl Bearing
Bronze. Grease packed for long trouble-
free life.
15 Tail Pipe or Strainer — Optional
Optional tail pipe cut to desired length for
best suction conditions. Strainer provides
protection from large solids
Optional Long Lateral
Long lateral adjustment on some
models for maximum setting
capabilities.

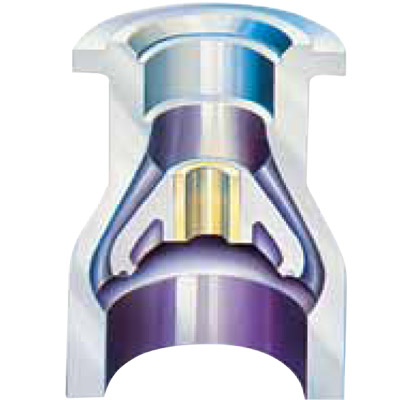

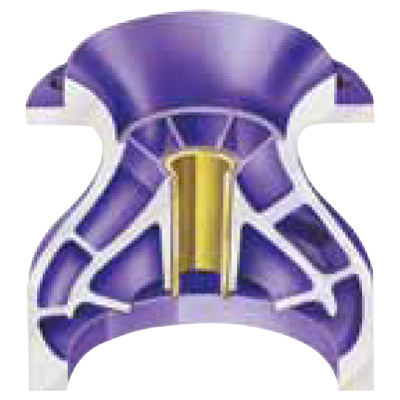

Glass Lined Bowls
Heavy-duty Class 30 cast iron inter-
mediate bowls with standard feature
of vitra-glass lined waterways for max-
imum efficiency and wear protection.

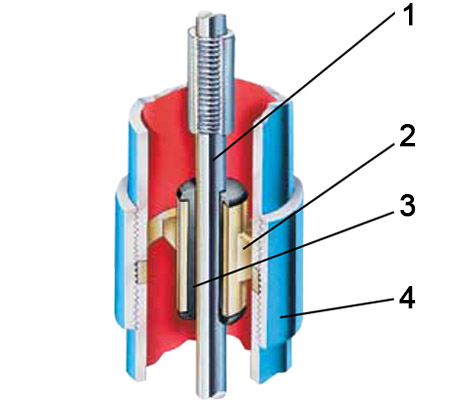

Column Assembly
1、Lineshaft
High strength steel with chrome spots. Ground and polished for exact bearing fit. Available in carbon steel or stainless steel.
2、Bearing Retainer
Bronze.
3、Lineshaft Bearings
Fluted rubber, designed to flush sand and grit rapidly.
4、Column Pipe and Couplings
Parallel thread, accurately machined for easy installation, accurate align-ment.
Lineshaft
Short Set Turbine
• Capacities to 9000 GPM (2043 m 3 /h)
• Heads to 1400 feet (427 m)
Design Flexibility
Goulds Water Technology offers a wide variety of design options to suit most any short set turbine applications.

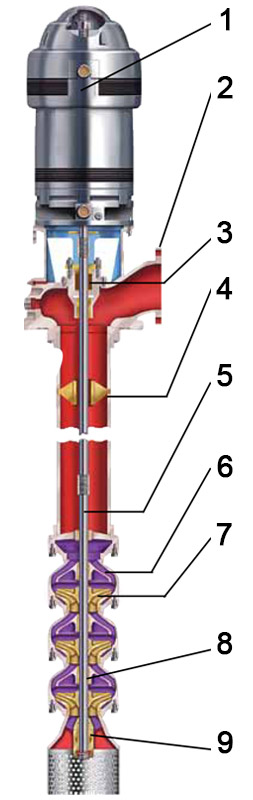

1、Vertical Hollow Shaft or Solid Shaft Motors
2、Cast Iron or Fabricated Discharge Head
Designed for mounting electric motor, right angle or combination gear.
3、Packed Stuffing Box or Mechanical Seal
4、Threaded or Flanged Column Assemblies
With bronze or cast iron bearing retainers.
5、Lineshaft
Polished high strength stainless steel. Other alloys available.
6、Intermediate Bowls
Waterways glass lined for maximum efficiency.
7、Impellers
Taperlocked or keyed construction. Precision balanced for smooth operation.
8、Intermediate Bowl Bearings
Bronze, rubber or carbon for long pump life under any conditions.
9、Suction Bell Bearing
Grease-packed for long trouble-free life.

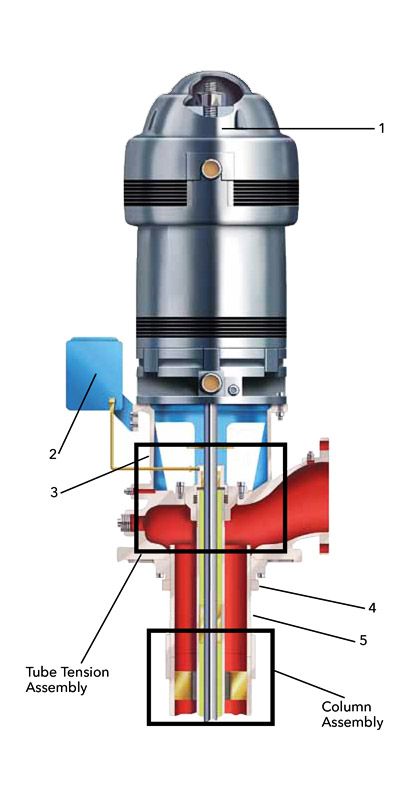

Oil Lubrication
1 Adjusting Nut
Permits exact impeller adjustment for maximum performance.
2 Large Capacity Manual or Solenoid Oiler
Assures constant oil supply.
3 Discharge Head
Heavy-duty head provides maximum accessibility to service tube tension assembly. Two piece headshaft is standard.
4 Lock Ring
Positively locks adjusting nipple to discharge head.
5 Adjusting Nipple
Threads directly into column adapter.Headshaft stickup set exactly by threading head on column as required.
6 Tube Adapter Bushing
Bronze.
7 Double Bowl Seal — Optional
Provides positive sealing of developed head.
8 Pump Shaft
Oversized high strength polished stainless steel.
9 Discharge Bowl
Close grained cast iron. Relief ports insure positive bearing lubrication.
10 Discharge Bowl Bearing
Bronze. Close tolerance fit for minimum leakage.
11 Impellers
Silicon bronze. Designed for maximum efficiency.Precision balanced for smooth operation.
12 Intermediate Bowls
Close grained cast iron. Waterways glass lined for maximum efficiency.
13 Intermediate Bowl Bearings
Bronze or rubber for long pump life under any well conditions.
14 Lock Collets
Steel construction secures impeller to pump shaft.
15 Sand Collar
Accurately located at suction bowl bearing to eliminate possible sand buildup.
16 Suction Bowl Bearing
Bronze. Grease packed for long trouble-free life.
17 Tail Pipe or Strainer — Optional
Tail pipe cut to desired length for best suction conditions. Strainer provides protection from large solids.

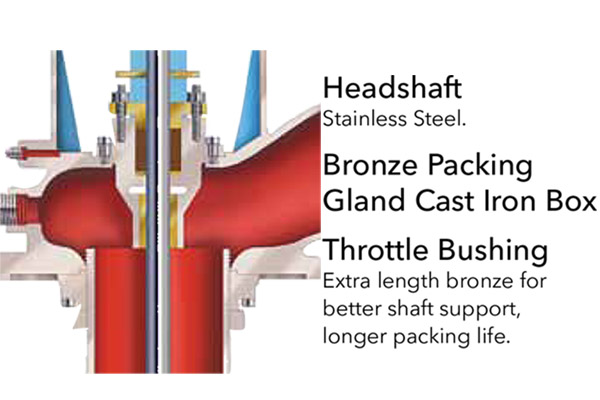

Headshaft
Steel.

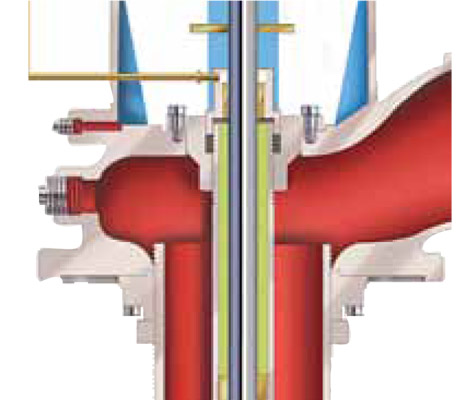

Tube Tension Nut
Heavy-duty cast iron.
Tension Nut Bushing
Bronze construction. Spiral groove insures
positive lubrication to lineshaft bearings.
Heavy-Duty Tension Plate
For positive alignment of lineshaft bearings
