BNS series Single Stage, End Suction Norm Centrifugal pumps

Applications:
• Raw Water Supply
• Drinking water supply
• Industrial Applications
• Irrigation
• Hot water Circulation
• Sea Water
• Cold Water Circulation
• Pool Water
• Condense Systems
• Fire Fighting Systems
• Process water supply in the field: Pulp/paper, Steel, Food, Sugar Industry.
• Chemical Industry
• Bioethanol

SPECIFICATIONS:

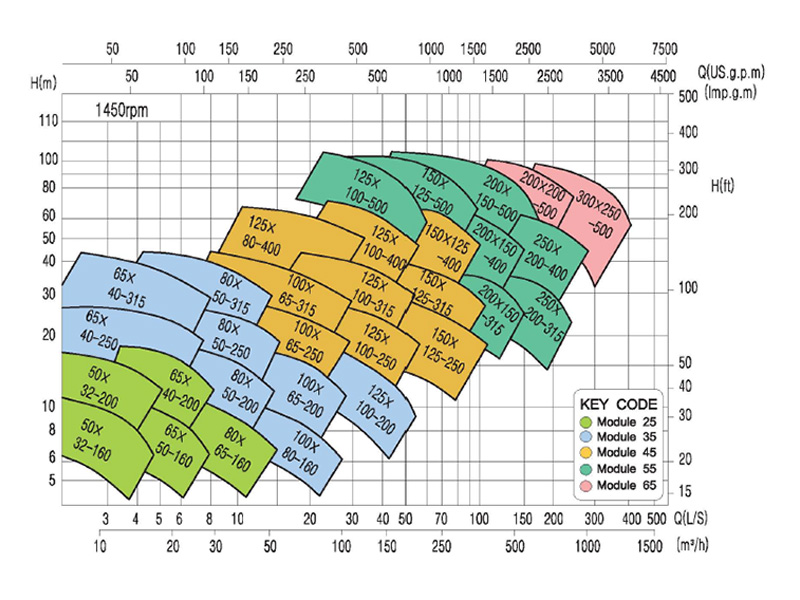

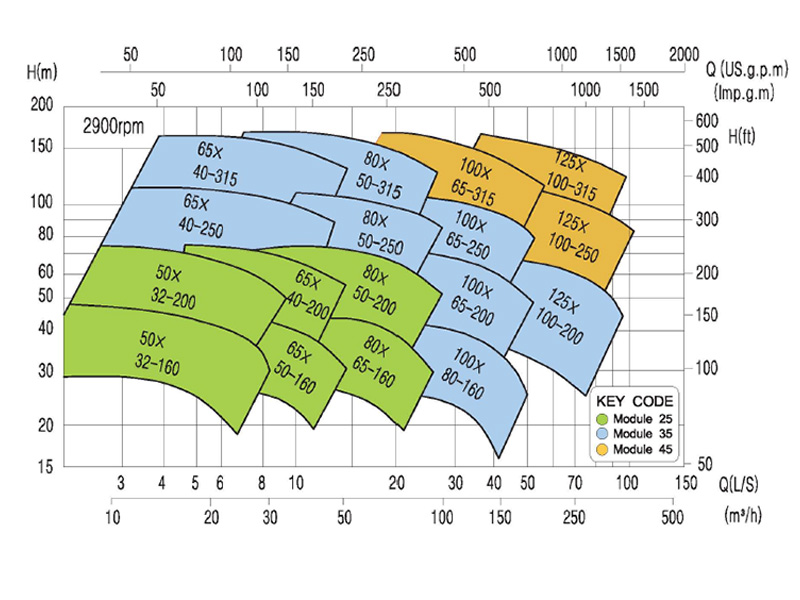

Speed: 2900r/min 1450rpm or 1480rpm
Max Capacity: 100L/S—400L/S
Max Head: 160m—100m
Max Speed: 3500rpm (Diameter of impeller will be reduced )
Max Working Temperature:105 ℃
Working Pressure: Generally it is 1.6Mpa, It can rise to 2.4Mpa
if material is Nodular cast or Cast Steel .

Product Detail

Product Tags

Application Std：ISO 2858
Remarks:
We have been OEM for many brands from Europe and our pumps has been used by famous brands from Middle east to apply for UL/FM Certificate.
We can make pumps with the bearing housing as your own design.

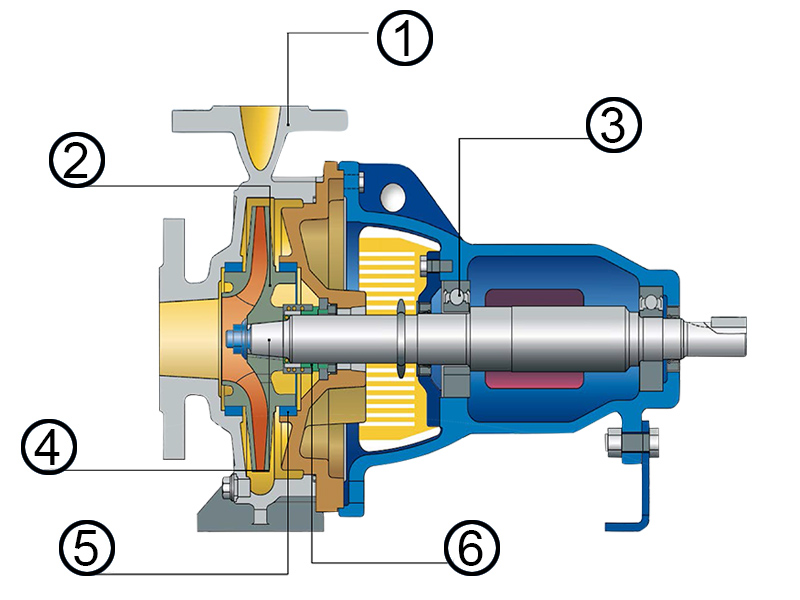

Constructure

Well-proven design

An innovative product policy and continuous advancement of essential design features make this pump a powerful, yet economical standard unit with a broad range of applications.

1、Spiral casing
• Standard connection sizes (ISO)
• Flange bore holes (PN 10, PN 16)
• Bore hole for pressure gauge in the suction and delivery flanges

2、Impeller
• Closed design
• High efficiency

4、Shaft
• Conical impeller seat provides ease of installation

5、Wear rings
• Replaceable wear rings
• Axial thrust compensation
