BMN series Horizontal Mixed Flow pumps

Applications:

• Irrigation
• Industrial Applications
• Drainage
• Shrimp Ponds
• Flooding

SPECIFICATIONS:
Speed: 970rpm(max)
Capacity:150m3/h—14500m3/h
Head: 4m—70m
Size:10”—42”
Working Condition: Generally it is 1Mpa and Temperature of water≤105℃

Application Std： Flange std can be BS,DIN,ISO,etc

Product Detail

Product Tags

Remarks:

We have been OEM for many brands from Europe and USA
BMN series is used widely for the irrigation

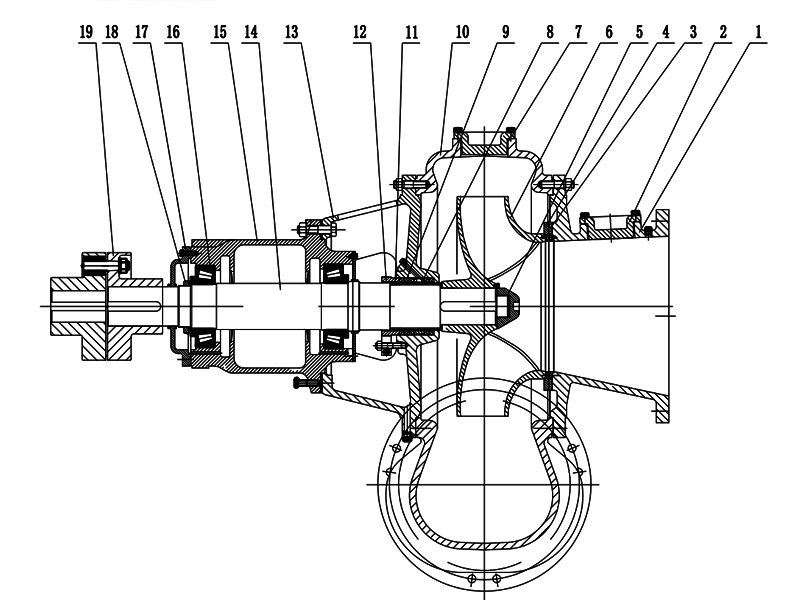

Constructure

NO.
1	Hand hole cover	2%Ni HT250
2	Suction head	2%Ni HT250
3	Suction head wear ring	ZG1Cr13
4	Impeller wear ring	ZG1Cr13
5	Impeller nut	1Cr18Ni9Ti
6	Impuller	ZCuZN16Si4
7	Hand hole covr	2%Ni HT250
8	seal cage ring	ZCuZN16Si4
9	packing	Asbestos
10	Pumo casing	2%Ni HT250
11	Shaft sleeve	1Cr18Ni9Ti
12	Packing cover	ZCuZN16Si4
13	Stuffing box head	2%Ni HT250
14	Shaft	UNS S-31803
15	Bearing box	HT250
16	Bearing	SKF
17	Bearing cover	HT250
18	Nut	A2-70
19	Coupling part
