BT/H series Selfpriming Sewage and Trash Pumps
Application Std: Flange std can be BS,DIN,ISO,etc
Remarks: We have been OEM for many brands from Europe and USA

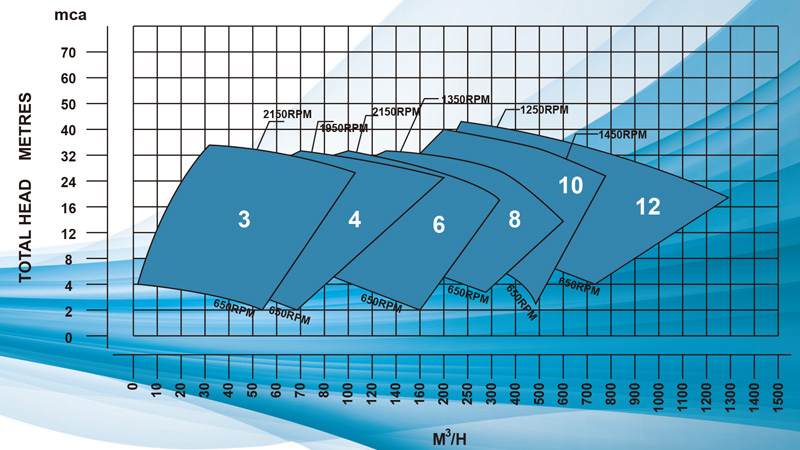

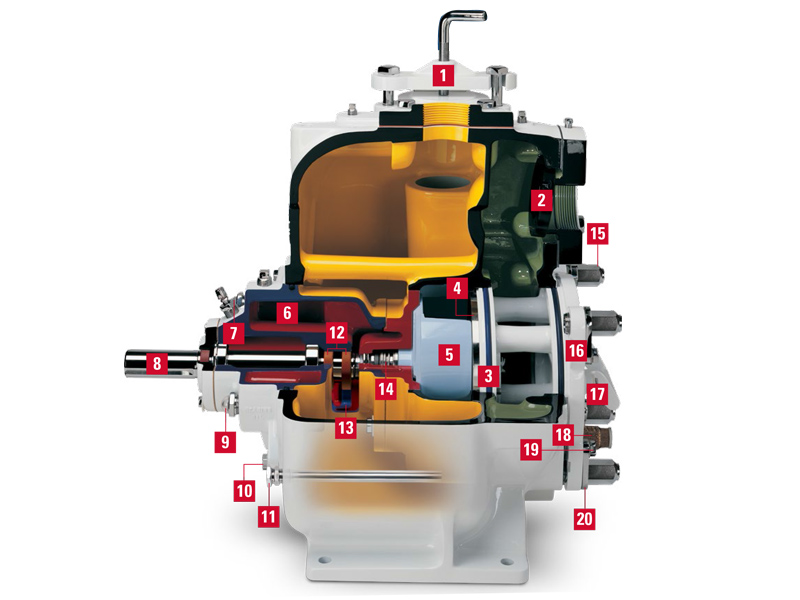

Constructure
01 | fill Port | 12 | double lip Seals |
02 | Suction Check Valve | 13 | Atmospheric Bearing isolation |
03 | O-Ring Seal | 14 | Cartridge Mechanical Seal |
04 | Replaceable Wearplate | 15 | Easy-Off Coverplate nuts |
05 | Balanced impeller | 16 | Removable Coverplate |
06 | Oversized Seal Oil Chamber | 17 | Easy-Grip handle |
07 | Seal Oil Monitor | 18 | Pressure Relief Valve |
08 | Removable Rotating Assembly | 19 | Pusher Bolt Capability |
09 | Bearing Oil Monitor | 20 | Shimless Coverplate Adjustment |
10 | Pusher Bolt Capability | ||
11 | Optional Casing heater |

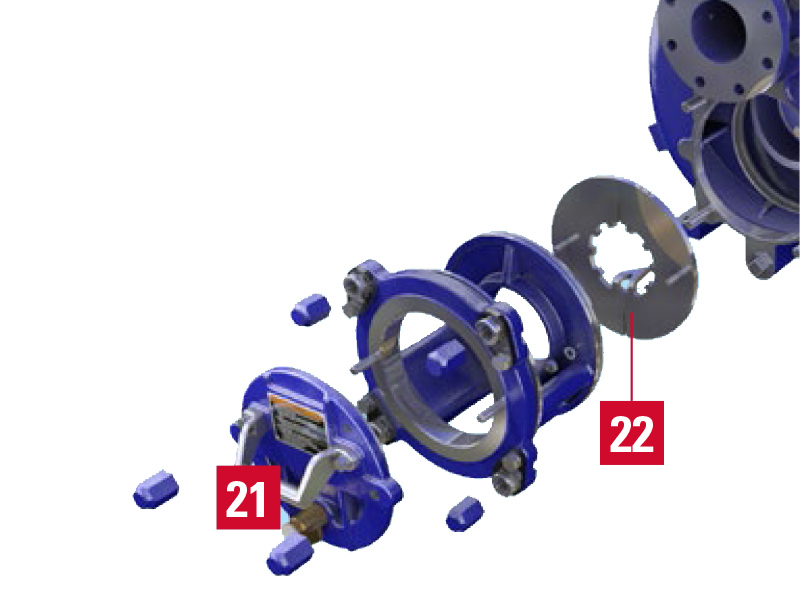

21、lightweight inspection Cover
The patented design allows for easy access to the impeller for routine maintenance and clearing blockages.
22 、Aggressive Self-Cleaning Wearplate
Incorporates grooves, notches and tooth to shred stringy materials to further reduce clogging.

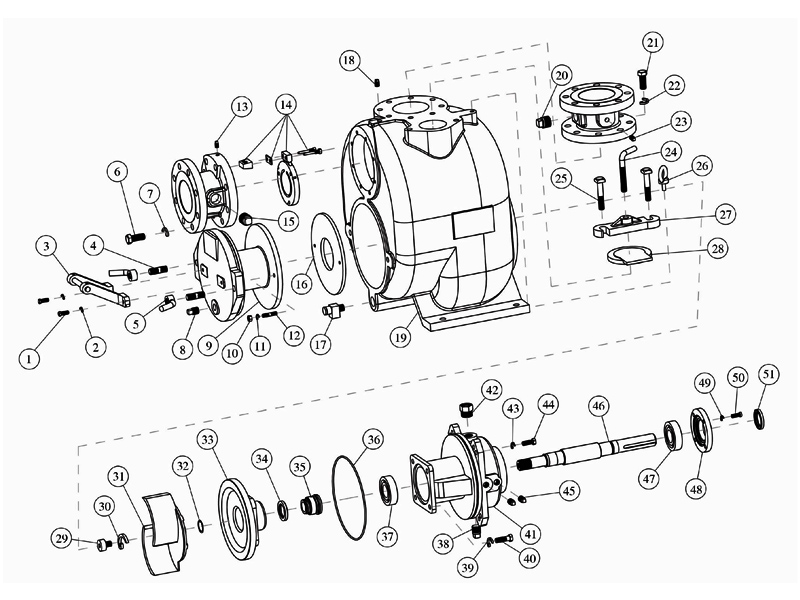

1 | screw | 18 | PLUG | 35 | mechanical seal |
2 | washer | 19 | Pump casing | 36 | o-ring |
3 | handler | 20 | plug | 37 | Bearing |
4 | bolt | 21 | screw | 38 | plug |
5 | handler | 22 | washer | 39 | washer |
6 | screw | 23 | plug | 40 | screw |
7 | washer | 24 | handler | 41 | bearing housing |
8 | plug | 25 | screw | 42 | oil cup |
9 | suction flange | 26 | eye ring | 43 | washer |
10 | nut | 27 | seal cover | 44 | screw |
11 | washer | 28 | seal cover | 45 | plug |
12 | bolt | 29 | screw | 46 | shaft |
13 | plug | 30 | washer | 47 | bearing |
14 | flap valve assembly | 31 | impeller | 48 | bearing cover |
15 | plug | 32 | washer | 49 | washer |
16 | wearing plate | 33 | pump cover | 50 | screw |
17 | Pressure releasing valve | 34 | oil seal | 51 | oil seal |
