BC series Medium-Consistency Pumps


Conveyance of stock suspensions of up to 16% bone dry in the pulp and paper industry.
• Chemical pulp
• Mechanical pulp
• Waste paper
• Molasses


Speed: 1500rpm–2900rpm/1750rpm–3500rpm
Capacity: 5000 admt/d
Head: 195m(max)
Working Condition: 16/25 bar max
Efficiencies :70%
Stock Consistencies :16%
Temperature of liquid: -40℃ to 140℃ , PH=0-14

Product Detail

Product Tags

Application Std:Flange std can be BS,DIN,ISO,etc

Remarks: We have been OEM for many brands from Europe and USA

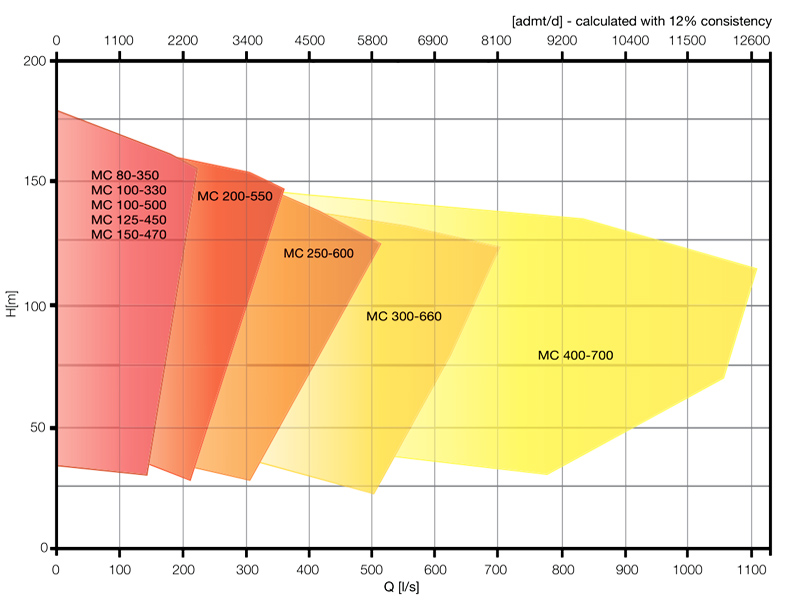

Performance Curve

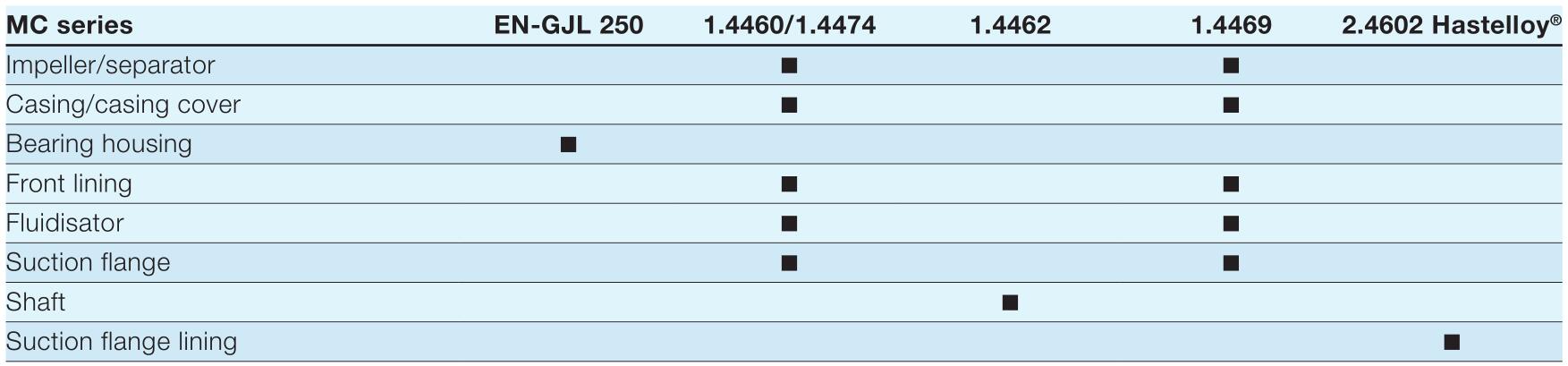

European standard US standard
Number Name Grade UNS
EN-JL1040 EN-GJL 250 Class 40B /
1.4460/1.4474 X3CrNiMoN27-5-2 Grade 3A J93370
1.4462 X2CrNiMoN22-5-3 Grade 3A S32205
1.4469 GX2CrNiMoN26-7-4 Grade 4A S32615
2.4602 Hastelloy ® NiCr21Mo14W Grade 4A N06022
