BE series API 610 OH2 Process Pumps

Applications:

BE series pumps are designed to API 610 10th specifications for the petrochemical, chemical and oil&gas markets.All API materials are avaiable as standard to match your application.



SPECIFICATIONS:
Speed: 1500rpm–2900rpm/1750rpm–3500rpm
Capacity:3400m3/h
Head: 335m(max)
Working Condition:20/40 bar/50 bar( max )
Temperature of liquid: -40℃ to 425℃ , PH=0-14



Application Std:API 610 10th Version



Remarks: We have been OEM for many brands from Europe and USA


Product Detail

Product Tags

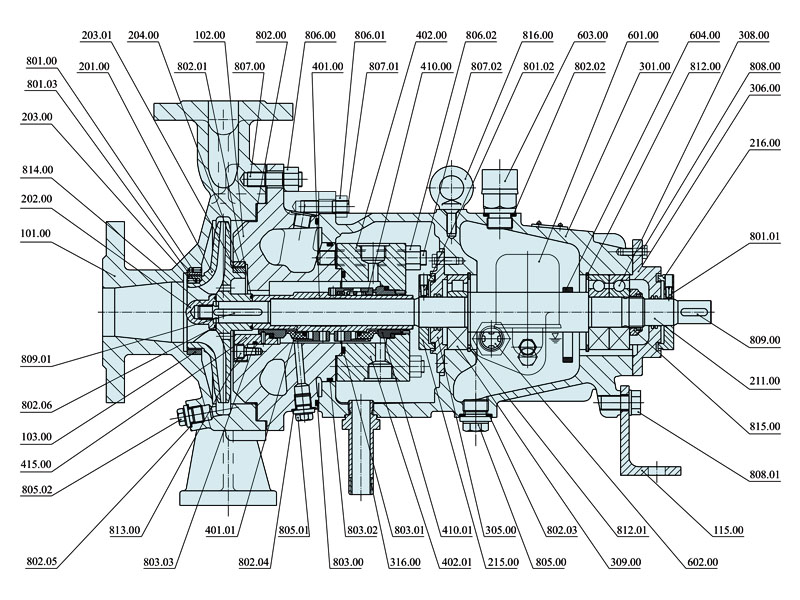

Constructure

be-4
101.00 Pump casing 211.00 Shaft 401.00 Bearing sleeve 603.00 Oil separator 808.00 Bolt
102.00 Pump cover 215.00 Front baffle plate 401.01 Bearing sleeve 604.00 Oil slinger 809.00 Key
103.00 Casing wear ring 216.00 After baffle plate 402.00 Machine seal gland 801.00 Screw 812.00 The circlip
115.00 Support 301.00 Bearing housing 410.00 Machine seal gland 802.00 Sealing gasket 813.00 Screw
201.00 Impeller 305.00 Front bearing gland 410.01 Mechanical seal 802.06 Sealing gasket 814.00 Wire threaded sleeve
202.00 Impeller nut ’306.00 After bearing gland 415.00 Mechanical seal 803.00 O-ring 815.00 Round nut
203.00 Front wear ring
of impeller
308.00 Bearing 601.00 Internal gland 805.00 Plug 816.00 Screw ring
203.01 Back wear ring
of impeller
309.00 Bearing 601.00 Constant level oiler 806.00 Nut
204.00 Cover wear ring 316.00 Discharge the
residual liquid pipe
602.00 Oil window 807.00 Stud

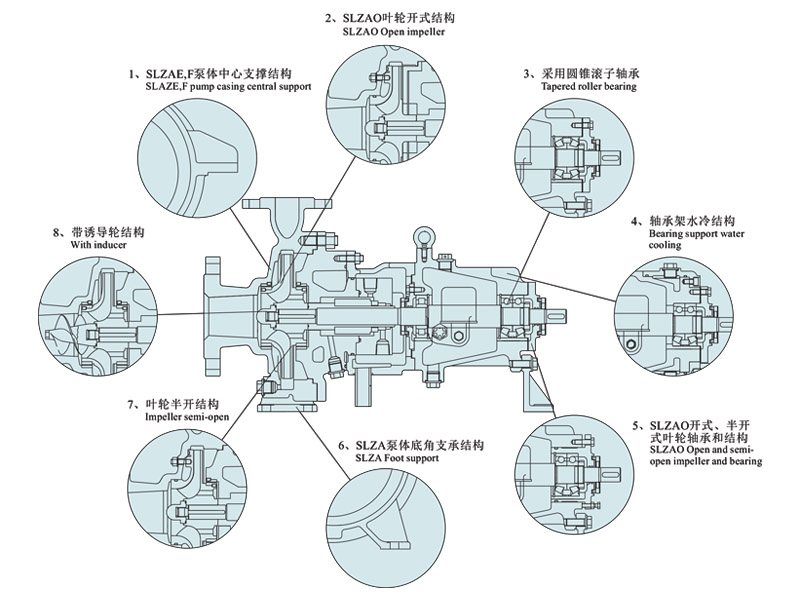

Structure evolution

be-5

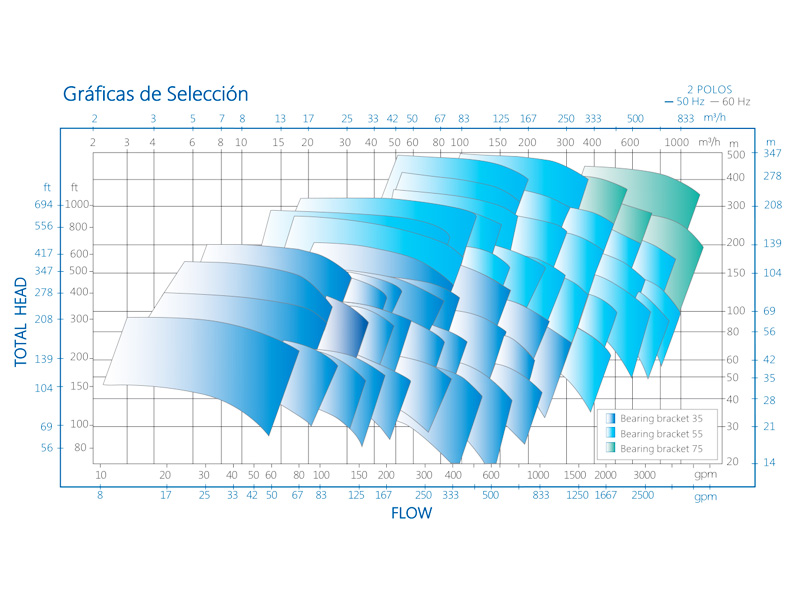

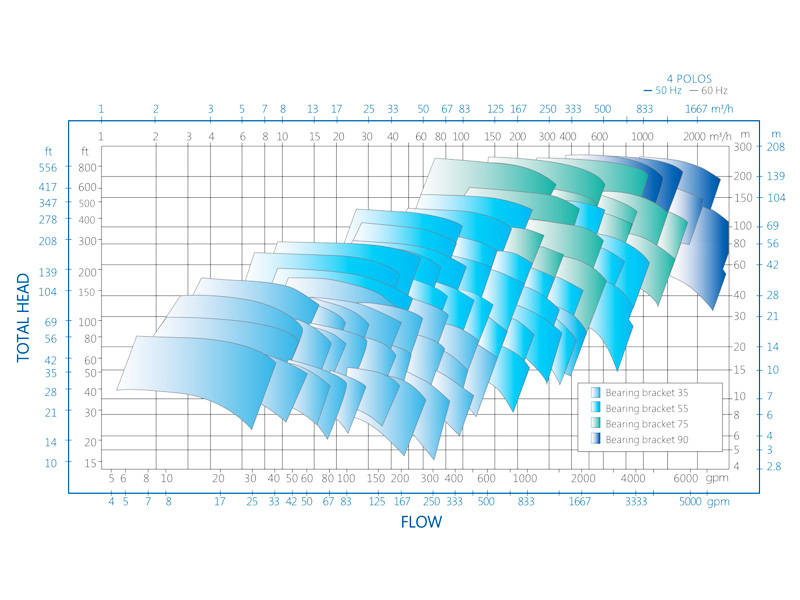

Performance Curve

Rango de Rendimiento

be-2
be-3
