BP series Vacuum assisted selfpriming Pumps

Applications:
• Construction
• Industry
• Municipal
• Agriculture
• Mining
• Dewatering
• Industrial Waste
• Sewage
• Oil Field
• Petrochemical
• High Pressure Liquid Transfer
• Paper Mills
• Manure Slurry



SPECIFICATIONS:
Speed:1500rpm–2900rpm/1750rpm–3500rpm
Capacity:45,000gpm
Head:750+Feet
Size:3”—-30”
Size of Solid: 1.9cm—14.9cm



Application Std: Flange std can be BS,DIN,ISO,etc



Remarks:
We have been OEM for many brands from Europe and USA


Product Detail

Product Tags

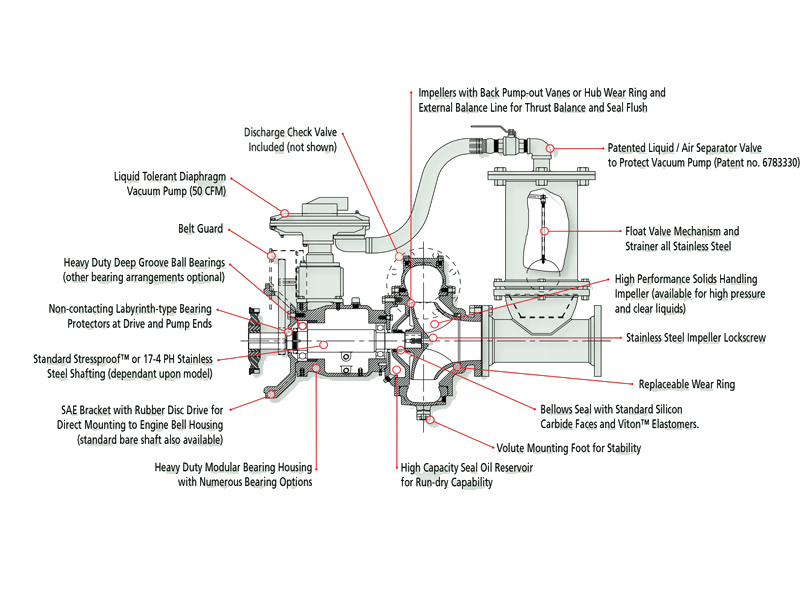

Constructure:

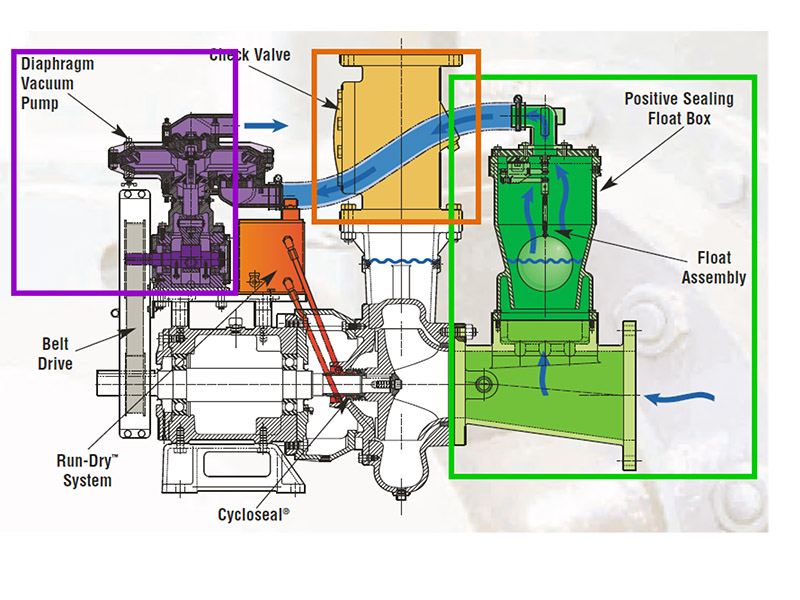

Superior Pump Performance

The vacuum asssted pump delivers extreme flows,high head cability,and a priming system capable of rapid unattended priming and run-dry operation.

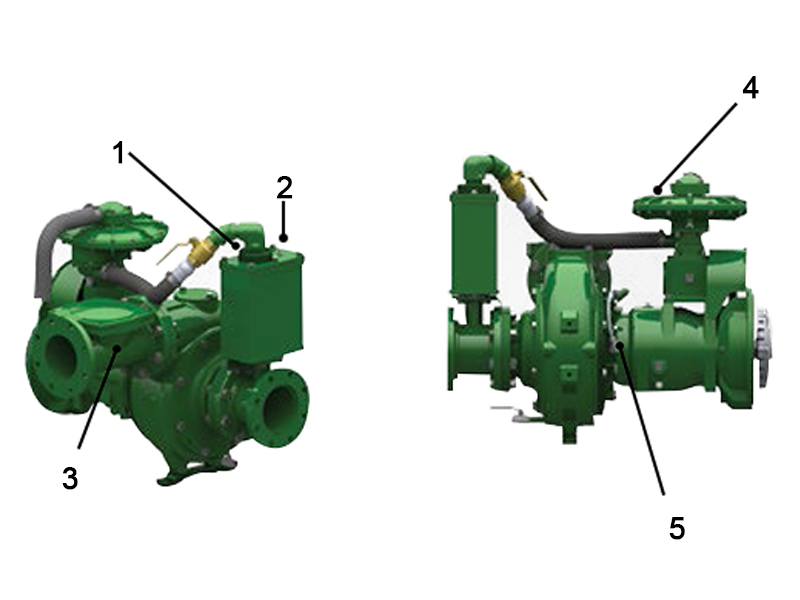

2、Priming chamber

1、Stainless steel priming valve
designed to eliminate carryover

bp-1-1

4、50 CFM diaphragm
vacuum pump for rapid
prime and re-prime

3、Discharge check valve
allows dry priming

5、Oil-immersed mechanical seal
for extended life

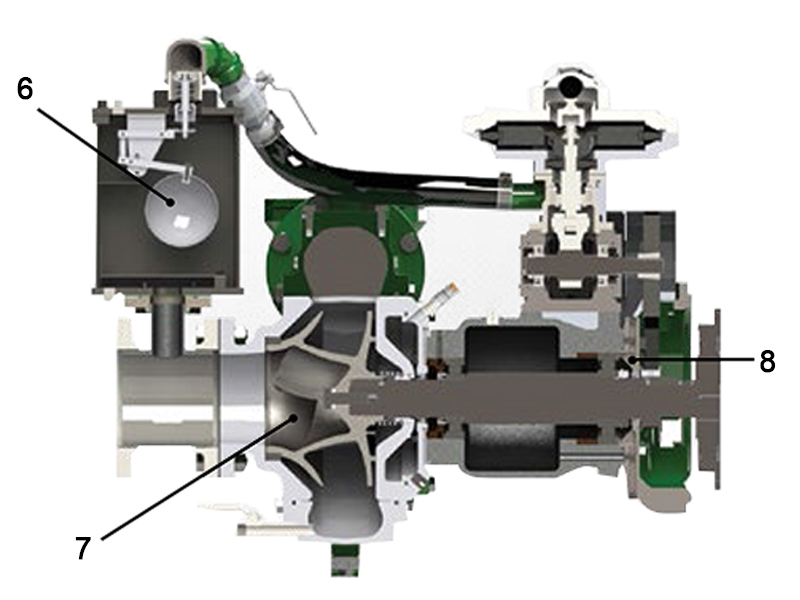

6、Stainless steel float
valve and strainer

7、High performance CA6NM
stainless steel impeller
provides more flow
with less horsepower for
lower operating costs

bp1-2







8、Chromed shafts,replaceable wear rings and oversized bearings minimize maintenance costs

bp1-3

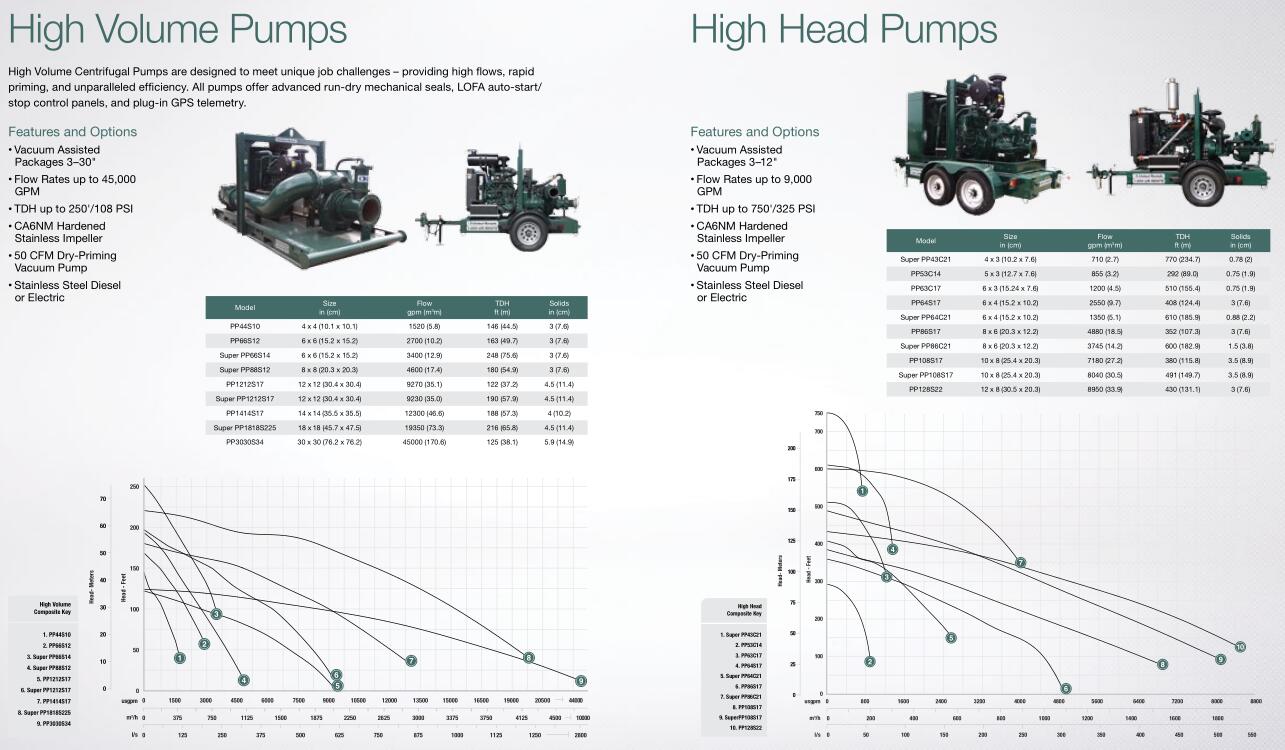

Prime SERIES

SIZES: 3-18 Inches FLOWS: 50-18,000 GPM / Heads to 500+ Feet

Prime SERIES

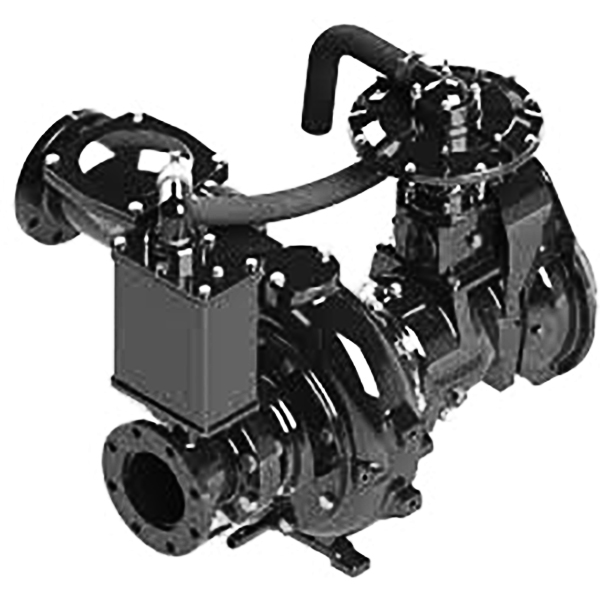

This series includes any of our end-suction centrifugal pumps combined with our high capacity, vacuum-assist,dry-priming system, capable of rapid, unattended priming and continuous repriming.Units are available for Solids Handling or Clear Liquid Service. Enclosed Silent Packages are available with DBA Ratings under 70 DBA@ 7 meters. Pumps are also available in a variety of different metallurgies.

bp-10

Available Mounting Configurations:
• Engine Driven Skid or Trailer Packages
• Electric Base Mounted Packages
• Engine Drive SAE Mounted Pump End
• Bare Shaft Mounted Pump End



bp-6
bp-7
