BD series Double Suction Split Casing pumps

Applications:

• Raw Water Supply
• Drinking water supply
• Industrial Applications
• Irrigation
• HVAC and Cooling Tower
• Marine and ship buildings
• Cold Water Circulation
• Pool Water
• Condense Systems
• Fire Fighting Systems



SPECIFICATIONS:
Speed: 2900rpm/ 1480rpm/1750rpm/3500rpm
Capacity: 60m3/h—2,000m3/h
Head: 20m—145m
Max Speed: 3500rpm (Diameter of impeller will be reduced )
Max Working Temperature: 105 ℃
Working Pressure: Generally it is 1.6Mpa, It can rise to 2.4Mpa
if material is Nodular cast or Cast Steel .



Application Std:Flange std can be BS,DIN,ANSI,etc


Product Detail

Product Tags

Remarks:
• We have been OEM for many brands from Europe and our pumps has been used by famous brands from Middle east to apply for UL/FM Certificate.
• We can make pumps with the bearing housing as your own design.

Constructure

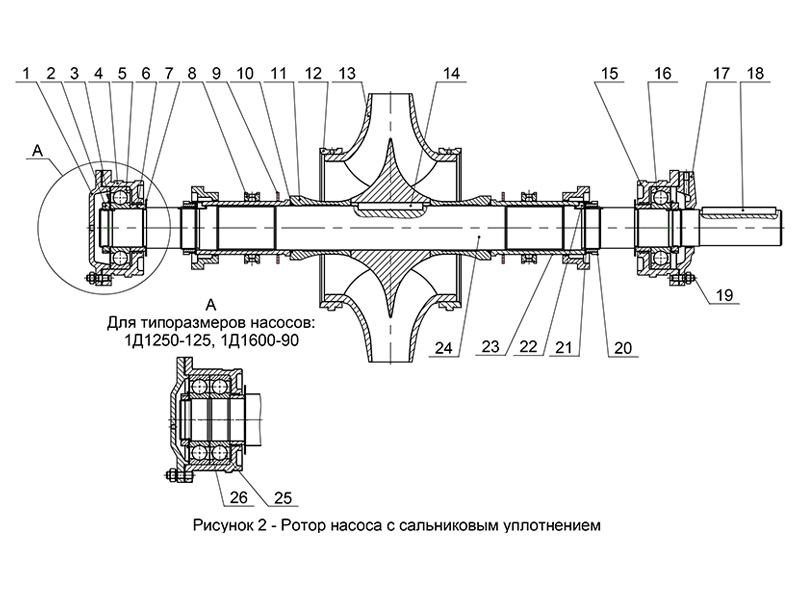

Drawing -1

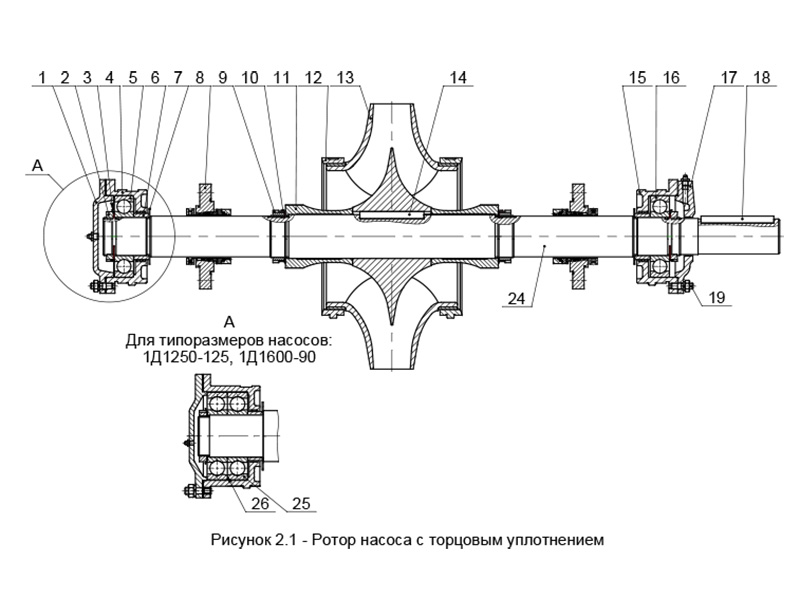

Drawing -2

Performance Curve

Drawing -3
Drawing -4
